Converters

• RS232 to LIN converter with 24V Supply Voltage and extended temperature range
• DIN-Rail mountable enclosure
• Power supply via LIN Bus connector

• Galvanically isolated RS232 to TTL converter
• DIN-Rail mountable enclosure
• Available in many variants upon request, e.g. TTL Low Voltage, LIN Bus, K-Line, …

• Galvanically isolated RS232 to LIN converter
• DIN-Rail mountable enclosure
• Power supply via LIN Bus connector
• Available in many variants upon request, e.g. K-Line

• USB-USB isolator for protection against costly surprises
• Transparent, no special driver required
• Protection of up to 3000 V
• Low/Full Speed mode selector
• 100mA Downstream

Level converter with USB interface, provides a serial interface with galvanic isolation for Notebook or Desktop PCs

• Available for RS232, 5V TTL or 3,3V TTL Level
• DC I/O isolation up to 2500V
• Extended Clearance Distance (6,2mm) and Creepage Distance (7mm)
• Additionally one control input and one control output available
• Serial Connector: 9 pin D-Sub Connector (m)
• Driver Support for most common operating systems (e.g. WINDOWS, MAC OS, Linux) by FTDI

• Low cost level converter for serial interface with galvanic insulation
• Transfer rate up to 115kBit
• LV: Low Voltage signal level 2,5V
• 1,8V TTL Level and different connectors available upon request

• Low cost level converter (physical Interface) from RS232 (serial port) to K-LINE Bus (ISO9141)
• Power Supply by K-LINE connector (no additional power supply needed)

• Level converter for serial (RS232) to LIN conversion
• Power supplied by LIN connector (no additional power supply needed)
• Also available with „automatic power down“

• Low cost level converter for serial interface with galvanic insulation
• Transfer rate up to 115kBit
• Variant with internal DC-DC converter available
• Further supply voltage and connector variants available upon request

• Level converter for the serial interface (RS232)
• TTL side: 9 pin D-SUB (male) with UNC nut
• Supply voltage 3,3..5V
• Also available with voltage regulator for 8..15V supply voltage

• Level converter for the serial interface (RS232)
• TTL-side connector: 10 pin IDC (0,1″ Pitch)
• Supply voltage 3,3..5V
• Also available 3V Version lieferbar

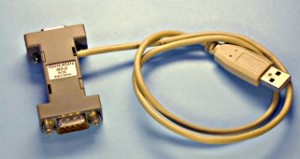

• Galvanic isolation for RS232 data lines
• For analyzing/measuring equipment or SPS with serial interface
• Voltage supply via USB, PS/2 oder external PSU

Ideal for prototypes, CAN Bus, free wiring or debugging purposes

• Distinct pin assignment:
  Pin 1 D-SUB = Screw terminal 1
• D-SUB side available in male or female version
• Miniature screw terminal for strands up to 0,75mm²
• Matching screwdriver available as accessory
• Strain relief possible with cable ties
